GLASS & TILE DRILL BITS
CARBIDE TIPPED GLASS DRILL BITS




  GLASS & TILE BITS

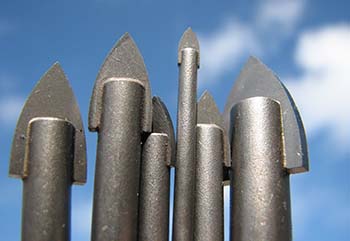

The B&A Glass & Tile bit features a spear point carbide tip that provides a smooth accurate drilling in ceramic tile, marble, china, mirrors, and glass that minimizes breakout.

Run the drill at a slow speed (300-600 RPM's)

Since glass and tile are very sensitive, we recommeend using a variable speed drill on the slowest speed possible. A lubricant such as mineral spirits or turpentine should be used to help keep the bit cool. This product is not recommened for tempered glass.



  B & A Manufacturing Company - carbide tipped drill bits accessories adapters - glass drill bit



GLASS & TILE DRILL BITS
GD SERIES

PART
NUMBER

SIZE OAL SHK WT
LBS
 GD-1250 1/8" 2-1/8" 7/64" 0.01
 GD-1875 3/16" 2-1/8" 5/32" 0.05
 GD-2500 1/4" 2-5/8" 11/64" 0.05
 GD-3125 5/16" 3" 7/32" 0.10
 GD-3750 3/8" 3-1/8" 9/32" 0.10
 GD-5000 1/2" 3-5/8" 5/16" 0.15


  Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
