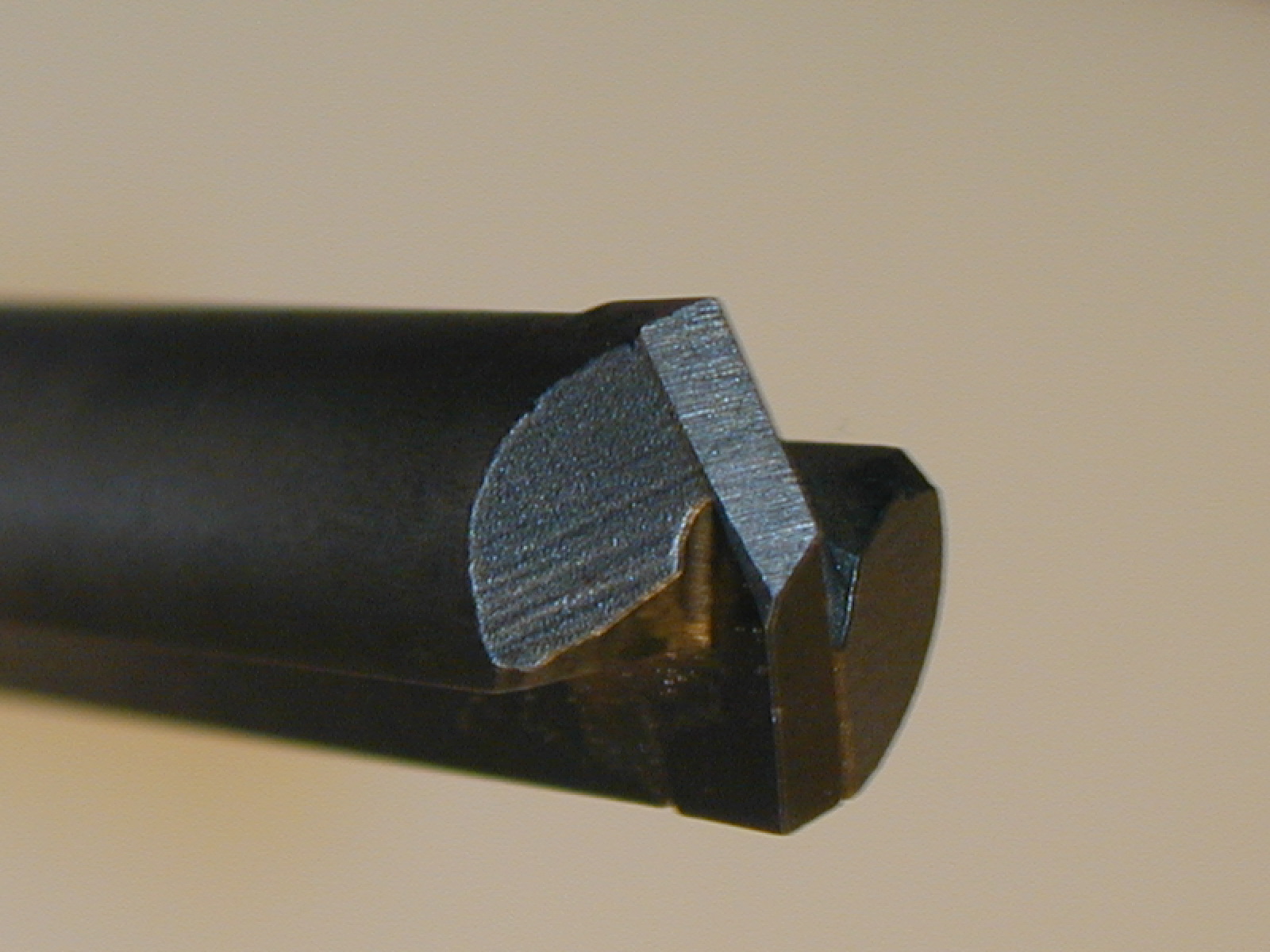

LHSP SERIES - LEFT HAND CUTTING - CARBIDE-TIPPED DRILL BITS |
| |
|
|
|
|
|
|
| |
|
|
|
|
LHSP SERIES - EXTRACTOR BITS

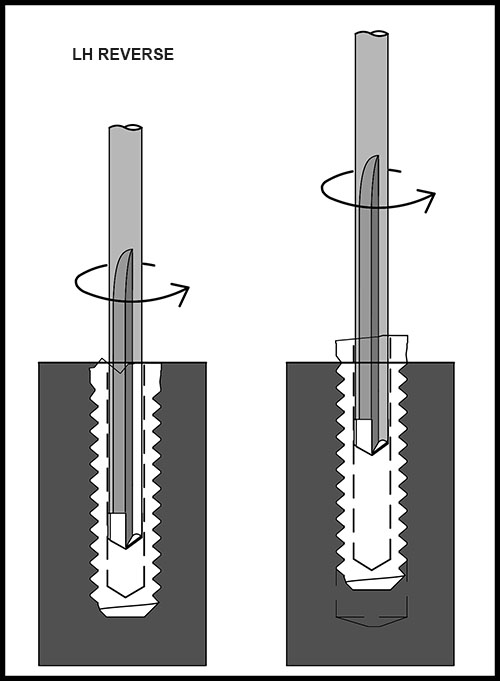

The B & A Extractor Bits are recommended for those occasions when you need to remove a broken bolt, a broken easy out, or threaded fastener. The left hand cutting action assists with backing the object out of the hole by it's counter clockwise spin.
ROUND SHANK
|
|
|
|
|
|
|
|
EXTRACTOR BITS
CARBIDE-TIPPED DRILL BITS - LEFT HAND |
PART
NUMBER |
SIZE |
OAL |
SHANK |
WT
LBS |
|
LHSP-1 |
1/8" |
2¾" |
1/8" |
0.01 |
|
LHSP-2 |
5/32" |
3" |
5/32" |
0.01 |
|
LHSP-3 |
11/64" |
3" |
11/64" |
0.01 |
|
LHSP-4 |
3/16" |
3" |
3/16" |
0.01 |
|
LHSP-5 |
7/32" |
4" |
7/32" |
0.05 |
|
LHSP-6 |
1/4" |
4" |
1/4" |
0.05 |
|
LHSP-7 |
1/4" |
6" |
1/4" |
0.05 |
|
LHSP-8 |
9/32" |
4" |
9/32" |
0.05 |
|
LHSP-9 |
5/16" |
4" |
1/4" |
0.05 |
|
LHSP-10 |
5/16" |
6" |
5/16" |
0.10 |
|
LHSP-11 |
3/8" |
4" |
1/4" |
0.10 |
|
LHSP-12 |
3/8" |
6" |
3/8" |
0.15 |
|
LHSP-13 |
7/16" |
6" |
3/8" |
0.15 |
|
LHSP-14 |
1/2" |
6" |
1/2" |
0.25 |
|
LHSP-15 |
9/16" |
6" |
1/2" |
0.30 |
|
LHSP-16 |
5/8" |
6" |
1/2" |
0.35 |
|
ADDITIONAL SIZES AND LENGTHS
AVAILABLE UPON REQUEST |
|
|
|
|
4 PIECE VARIETY PACK |
PART
NUMBER |
DESCRIPTION |
WT
LBS |
|
LHSP-123 |
4 Piece Variety Pack |
0.20 |
Consists
of
1 Each |
LHSP-4 |
3/16"X3" |
0.01 |
|
LHSP-6 |
1/4"X4" |
0.05 |
|
LHSP-9 |
5/16"X4" |
0.05 |
|
LHSP-12 |
3/8"X6" |
0.15 |
|
|
|
|
|
|
Don't see what you're looking for JUST CALL
800-327-8611 AND ASK. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXTRACTOR BITS
CARBIDE TIPPED DRILL BITS - REVERSE FLUTE |
|
|
|
|
|
|
