FIREBALL SELF FEEDING WOOD AUGER
WOOD DRILL BIT



Penetrator self feeding wood auger drill bits - carbide tipped drill bits

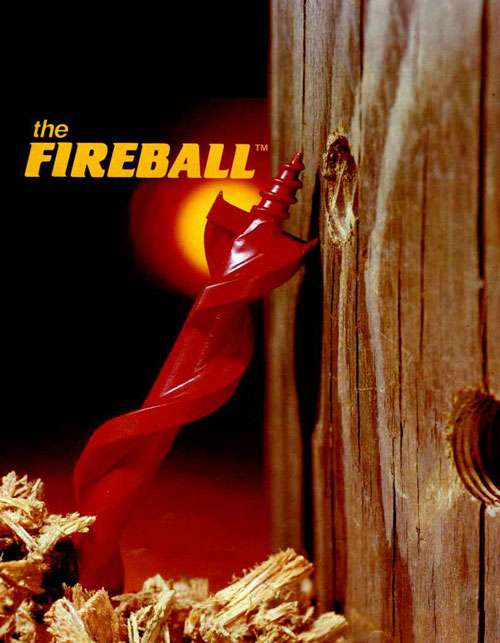

The FIREBALL is a general purpose, medium to heavy-duty, carbide-tipped, wood boring drill bit. It's milled from a single piece of steel creating a solid center and a truly unique flute design. This combination enables it to outperform and outlast any ordinary steel auger bit. The FIREBALL features a patented double spur, carbide-tip configuration and proven power-auger flute design. This design produces numerous straight holes.  The FIREBALL works with older hydraulic tools that may develop slightly less torque and speed. The FIREBALL can also be used with most heavy-duty electric, pneumatic, or gasoline powered drill motors or impact wrenches rated at 1/2" capacity or larger.






FIREBALL - H SERIES - WOOD AUGER - POLE BITS
PART
NUMBER
SIZE USL OAL WT
LBS
PART
NUMBER
SIZE USL OAL WT
LBS
7/16" HEX SHANK 5/8" HEX SHANK
9/16" Diameter 9/16" Diameter
 H70809 9/16" 9" 12" 0.45  H50809 9/16" 9" 12" 0.65
 H71209 9/16" 15" 18" 0.60  H51209 9/16" 15" 18" 0.80
 H71809 9/16" 21" 24" 0.95  H51809 9/16" 21" 24" 1.15
11/16" Diameter 11/16" Diameter
 H70811 11/16" 9" 12" 0.55  H50811 11/16" 9" 12" 0.80
 H71211 11/16" 15" 18" 0.75  H51211 11/16" 15" 18" 1.00
 H71811 11/16" 21" 24" 1.00  H51811 11/16" 21" 24" 1.05
 H73211 11/16" 33" 36" 1.35  H53211 11/16" 33" 36" 1.40
 H74411 11/16" 45" 48" 2.15  H54411 11/16" 45" 48" 2.30
13/16" Diameter 13/16" Diameter
 H70813 13/16" 9" 12" 0.60  H50813 13/16" 9" 12" 0.75
 H71213 13/16" 15" 18" 0.90  H51213 13/16" 15" 18" 1.05
 H71813 13/16" 21" 24" 1.15  H51813 13/16" 21" 24" 1.20
 H73213 13/16" 33" 36" 1.50  H53213 13/16" 33" 36" 1.60
 H74413 13/16" 45" 48" 2.55  H54413 13/16" 45" 48" 2.70
15/16" Diameter 15/16" Diameter
 H70815 15/16" 9" 12" 0.70  H50815 15/16" 9" 12" 0.85
 H71215 15/16" 15" 18" 1.05  H51215 15/16" 15" 18" 1.20
 H71815 15/16" 21" 24" 1.35  H51815 15/16" 21" 24" 1.60
1-1/16" Diameter 1-1/16" Diameter
 H70817 1-1/16" 9" 12" 0.80  H50817 1-1/16" 9" 12" 0.95
 H71217 1-1/16" 15" 18" 1.20  H51217 1-1/16" 15" 18" 1.30
 H71817 1-1/16" 21" 24" 1.60  H51817 1-1/16" 21" 24" 1.75
B & A does not warranty 7/16" Hex Shanks
 on wood bits over 1-1/8" in diameter.
Additional lengths and sizes available upon request.






Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
