SDS PLUS ® ™ MASONRY PERCUSSION
CARBIDE TIPPED HAMMER DRILL BITS
SDS PLUS ®™ MASONRY
PERCUSSION / HAMMER DRILL BITS

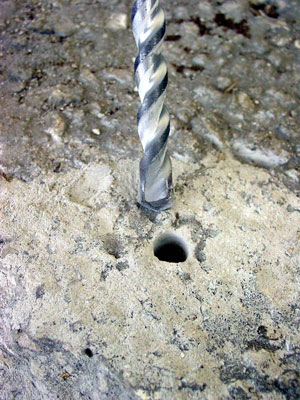

The versatile Slot Drive System (SDS PLUS ®™) fits all rotary hammers that specify a SDS PLUS ®™ Shank. This positive drive slot system delivers maximum drilling torque and maximum hammer energy for faster drilling. B & A has combined the "Ultra Flute" and the SDS PLUS ®™ shank to achieve a union that makes our SR Series the fastest drilling carbide-tipped hammer bit of its type!
|
SDS PLUS ®™ - SR SERIES - MASONRY |
|||||||||
|
PART NUMBER |
SIZE | USL | OAL |
WT LBS |
PART NUMBER |
SIZE | USL | OAL |
WT LBS |
| 5/32" Diameter | 1/2" Diameter | ||||||||
| SR-5324 | 5/32" | 2" | 4" | 0.05 | SR-014 | 1/2" | 4" | 6" | 0.20 |
| SR-5325 | 5/32" | 4" | 6" | 0.10 | SR-015 | 1/2" | 8" | 10" | 0.35 |
| 3/16" Diameter | SR-016 | 1/2" | 10" | 12" | 0.40 | ||||
| SR-037 | 3/16" | 2" | 4" | 0.10 | SR-017 | 1/2" | 16" | 18" | 0.60 |
| SR-001 | 3/16" | 4" | 6" | 0.10 | SR-3824 | 1/2" | 22" | 24" | 0.85 |
| SR-038 | 3/16" | 6" | 8" | 0.10 | 9/16" Diameter | ||||
| SR-044 | 3/16" | 10" | 12" | 0.15 | SR-018 | 9/16" | 4 | 6" | 0.25 |
| SR-045 | 3/16" | 12" | 14" | 0.15 | SR-019 | 9/16" | 8 | 10" | 0.35 |
| 7/32" Diameter | SR-020 | 9/16" | 10" | 12" | 0.50 | ||||
| SR-051 | 7/32" | 4" | 6" | 0.10 | SR-021 | 9/16" | 16 | 18" | 0.70 |
| SR-052 | 7/32" | 6" | 8" | 0.15 | 5/8" Diameter | ||||
| SR-053 | 7/32" | 10" | 12" | 0.15 | SR-022 | 5/8" | 4 | 6" | 0.30 |
| SR-055 | 7/32" | 12" | 14" | 0.20 | SR-023 | 5/8" | 8 | 10" | 0.45 |
| 1/4" Diameter | SR-024 | 5/8" | 10" | 12" | 0.55 | ||||
| SR-002 | 1/4" | 2" | 4" | 0.10 | SR-025 | 5/8" | 16 | 18" | 0.90 |
| SR-003 | 1/4" | 4" | 6" | 0.10 | 11/16" Diameter | ||||
| SR-060 | 1/4" | 6" | 8" | 0.15 | SR-026 | 11/16" | 6" | 8" | 0.55 |
| SR-062 | 1/4" | 10" | 12" | 0.15 | 3/4" Diameter | ||||
| SR-063 | 1/4" | 12" | 14" | 0.20 | SR-027 | 3/4" | 6" | 8" | 0.60 |
| 9/32" Diameter | SR-028 | 3/4" | 10" | 12" | 0.75 | ||||
| SR-064 | 9/32" | 6" | 8" | 0.20 | SR-029 | 3/4" | 16" | 18" | 1.15 |
| 5/16" Diameter | 13/16" Diameter | ||||||||
| SR-004 | 5/16" | 4" | 6" | 0.20 | SR-030 | 13/16" | 7" | 9" | 0.75 |
| SR-005 | 5/16" | 6" | 8" | 0.20 | 27/32" Diameter | ||||
| SR-006 | 5/16" | 10" | 12" | 0.25 | SR-031 | 27/32" | 7" | 9" | 0.90 |
| 3/8" Diameter | 7/8" Diameter | ||||||||
| SR-007 | 3/8" | 4" | 6" | 0.15 | SR-032 | 7/8" | 7" | 9" | 0.80 |
| SR-008 | 3/8" | 6" | 8" | 0.25 | SR-033 | 7/8" | 10" | 12" | 1.00 |
| SR-009 | 3/8" | 10" | 12" | 0.30 | SR-034 | 7/8" | 16" | 18" | 1.50 |
| SR-010 | 3/8" | 16" | 18" | 0.45 | 1" Diameter | ||||
| SR-3822 | 3/8" | 20" | 22" | 0.60 | SR-035 | 1" | 10" | 12" | 1.40 |
| 7/16" Diameter | SR-036 | 1" | 16" | 18" | 2.05 | ||||
| SR-011 | 7/16" | 4" | 6" | 0.20 | |||||
| SR-012 | 7/16" | 10" | 12" | 0.35 | |||||
| SR-013 | 7/16" | 16" | 18" | 0.40 | |||||
| BULK PACKAGES | |||||||||
| SR-5324-BULK | 5/32" | 2" | 4" | 0.00 | SR-060-BULK | 1/4" | 6" | 8" | 0.15 |
| SR-5325-BULK | 5/32" | 4" | 6" | 0.10 | SR-007-BULK | 3/8" | 4" | 6" | 0.15 |
| SR-037-BULK | 3/16" | 2" | 4" | 0.10 | SR-014-BULK | 1/2" | 4" | 6" | 0.20 |
| SR-001-BULK | 3/16" | 4" | 6" | 0.10 | SR-015-BULK | 1/2" | 8" | 10" | 0.35 |
| SR-002-BULK | 1/4" | 2" | 4" | 0.10 | SR-022-BULK | 5/8" | 4 | 6" | 0.30 |
| SR-003-BULK | 1/4" | 4" | 6" | 0.10 | |||||
AEG ®: APH14, PH210, PHE16RL, PHE19RL, PHE20, PHE24, PHE26
B&D ®: 5009, 5013K, 5014K, 5016, 5053K, 5054, 5056K, 5057K
BOSCH ®: 11207, 11210, 11211, 11212, 11213RK, 11215, 1221DVS, 11222EVS/G,
1224VSR, 11228VSR
FEIN ®: 642
HILTI ®: TE5, TE10A, TE12, TE12S, TE14, TE15ME, TE17, TE18, TE22P, GP22, TE24
HITACHI ®: DH22VB, DH22VD, VR16, VRT22
KANGO ®: 200, 285, 327, 422, 426, 430D
MAKITA ®: HR160, HR1821, HR2000, HR2400, HR2511, 8015DW
METABO ®: 6010, 6018, 6020, 6024, 6026
MILWAUKEE ®: 5302, 5303, 5324, 5362, 5365, 5366, 5368, 5369
RAMSET ®: 555, 715
RYOBI ®: ED160, ED211
Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
