COUNTER BORES
RAILROAD TIE BITS


< Previous           railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
Next  >



Typically used for countersinking Torx™ bolts in concrete railroad crossing pads, B & A Manufacturing Company’s Carbide Counter bore Bits are used to anchor concrete railroad crossing pads to their underlying wooden cross ties using a Torx™ head type bolt. The bolt must be installed below the surface of the concrete to prevent damage to vehicle tires. In colder climates where snow removal is necessary, this countersinking process prevents snowplow blades from shearing off the bolt head. Counter bore a two-inch hole into concrete was a difficult procedure until the advent of the B & A Carbide Counter bore Bit. Powered by an electric, hydraulic, or air powered rotary/percussion hammer, the B & A Carbide Counter bore Bit allows the operator to create a counter bore for any Torx® head style bolt to the proper depth quickly and easily.

railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits




RAILROAD TIE BITS - RRCB SERIES - MASONRY COUNTER BORE

PART
NUMBER

SIZE OAL

WT
LBS

DESCRIPTION


22" OAL
CDSS-22 2" 21" 6.55 Head - 12" Extension
Spline Adapter

rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits

CDSH-22 2" 22" 7.15 Head - 12" Extension
3/4" Hex Adapter
Adapter - pat-736 - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
CDSM-22 2" 22" 6.65 Head - 12" Extension
SDS MAX ® Adapter
Adapter - SDS Max - Pat-SMAX - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
28" OAL
CDSS-28 2" 27" 8.60 Head - 18" Extension
Spline Adapter

rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
CDSH-28 2" 28" 9.20 Head - 18" Extension
3/4" Hex Adapter
Adapter - pat-736 - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
CDSM-28 2" 28" 8.70 Head - 18" Extension
SDS MAX ® Adapter
Adapter - SDS Max - Pat-SMAX - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
34" OAL
CDSS-34 2" 33" 10.75 Head - 6" & 18" Extension
Spline Adapter

rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
CDSH-34 2" 34" 11.35 Head - 6" & 18" Extension
3/4" Hex Adapter
Adapter - pat-736 - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
CDSM-34 2" 34" 10.25 Head - 6" & 18" Extension
SDS MAX ® Adapter
Adapter - SDS Max - Pat-SMAX - Hammer - Percussion rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits
MASONRY COUNTER BORE REPLACEMENT PARTS
 RRCB-2000-4  2" 2" 1.05 Counterbore
Replacement Head
(3/4-10 Thread Female)

rrcb-2000-4 railroad counterbore - trox bolt system - counter sinking systems - railroad drill bits - carbide tipped drill bits - masonry drill bits

PDE-6    1¼" 6" 2.15 Extension 6"

PDE-6 - extension - percussion - hammer - 3/4-10 thread

PDE-12  1¼" 12" 4.25 Extension 12"
for 22" System

PDE-12 - extension - percussion - hammer - 3/4-10 thread

PDE-18 1¼" 18" 6.30 Extension 18"
for 28" & 34" System

PDE-18 - extension - percussion - hammer - 3/4-10 thread

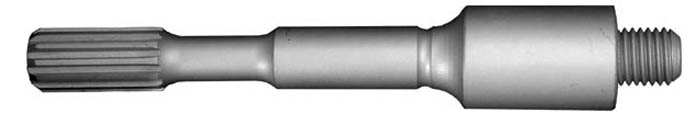

 PAT-BOSCH-S   Adapter 7" 1.25 Spline Drive
 Replacement Shank

Adapter - Spline Drive - Hammer - Percussion

 PAT-736 Adapter 8" 1.80 3/4" Hex Drive
Replacement Shank

Adapter - pat-736 - Hammer - Percussion

 PAT-SMAX  Adapter 8" 1.35 SDS MAX ®™
Replacement Drive Shank

Adapter - SDS Max - Pat-SMAX - Hammer - Percussion

 T-750 Stud 2" 0.20 Threaded Stud
Replacement

 adapter - threaded stud - 3/4-10 thread - t-750

RAILROAD TIE BITS - RRCB SERIES - WOOD COUNTER BORE
PART
NIMBER
SIZE OAL

WT
LBS

DESCRIPTION


RRCB15009 1-1/2" 9"



Wood Counter Bore
5/8 Hex Shank





Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
