ROTARY CORE
CARBIDE TIPPED MASONRY DRILL BITS - ROTARY ONLY


            carbide tipped rotary core drill bit - masonry drill bit - concrete drill bit bits



ROTARY CORE BITS

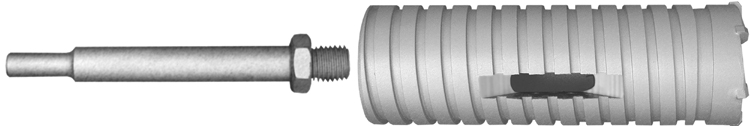

ROTARY CORE ASSEMBLY

Rotary Core Bits are used in standard rotary drill motors.  The Rotary Core Bit provides an extremely smooth cutting action and  a clean finished hole.  Because of the negative setting of the carbide cutting teeth, the RC Series can cut through the toughest and hardest of aggregate in any type of concrete.





ROTARY CORE BITS

PART
NUMBER
SIZE USL OAL SHANK WT
LBS
RC-100 5/8" 6" 12" 1/2" 0.70
RC-123 5/8" 6" 18" 1/2" 1.54
RC-101 11/16" 6" 12" 1/2" 0.80
RC-124 11/16" 6" 18" 1/2" 1.60
RC-102 " 6" 12" 1/2" 0.90
RC-125 " 6" 18" 1/2" 1.70
RC-103 7/8" 6" 12" 1/2" 1.00
RC-126 7/8" 6" 18" 1/2" 1.80
RC-104 1" 6" 12" 1/2" 1.20
RC-127 1" 6" 18" 1/2" 2.00
RC-105 1-1/8" 6" 12" 1/2" 1.50
RC-128 1-1/8" 6" 18" 1/2" 2.30
RC-106 1-" 6" 12" 1/2" 1.70
RC-129 1-1/4" 6" 18" 1/2" 2.50
RC-107 1-3/8" 6" 12" 1/2" 1.95
RC-130 1-3/8" 6" 18" 1/2" 2.75
RC-108 1-" 6" 12" 1/2" 2.15
RC-131 1-" 6" 18" 1/2" 2.95
RC-109 1-5/8" 6" 12" 1/2" 2.30
RC-132 1-5/8" 6" 18" 1/2" 3.10
RC-110 1-" 6" 12" 1/2" 2.45
RC-133 1-" 6" 18" 1/2" 3.20
RC-111 1-7/8" 6" 12" 1/2" 2.50
RC-134 1-7/8" 6" 18" 1/2" 3.30
RC-112 2" 6" 12" 1/2" 2.70
RC-135 2" 6" 18" 1/2" 3.50
RC-113 2-" 6" 12" 1/2" 3.25
RC-136 2-" 6" 18" 1/2" 4.15
RC-114 2-3/8" 6" 12" 1/2" 3.55
RC-137 2-3/8" 6" 18" 1/2" 4.30
RC-115 2-" 6" 12" 1/2" 3.95
RC-138 2-" 6" 18" 1/2" 4.75
RC-116 2-" 6" 12" 1/2" 4.30
RC-139 2-" 6" 18" 1/2" 5.10
RC-117 3" 6" 12" 1/2" 5.20
RC-140 3" 6" 18" 1/2" 6.05
RC-118 3-" 6" 12" 1/2" 5.95
RC-141 3-" 6" 18" 1/2" 6.85
RC-119 3-" 6" 12" 1/2" 8.90
RC-142 3-" 6" 18" 1/2" 9.70
RC-120 4" 6" 12" 3/4" 10.15
RC-143 4" 6" 18" 3/4" 10.95
RC-121 4-" 6" 12" 3/4" 11.50
RC-144 4-" 6" 18" 3/4" 12.30
RC-122 5" 6" 12" 3/4" 12.60
RC-145 5" 6" 18" 3/4" 13.40
RC-147 6" 6" 12" 3/4" 13.75
RC-146 6" 6" 18" 3/4" 14.55




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.



            rotary core shank - rcs series




ROTARY CORE SHANKS - RCS SERIES - REPLACEMENT SHANKS

PART
NUMBER
SIZE USL OAL SHANK WT
LBS
 RCS-6 "-10 6" " " 0.80
 RCS-12 "-10 12" " " 1.35
 RCS-1234 "-10 12" " " 1.50
 RCS-18 "-10 18" " " 2.00
 RCS-1834 "-10 18" " " 2.25
 RCS-24 "-10 24" " " 2.70
 RCS-36 "-10 36" " " 4.00




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.








ROTARY CORE PILOT - SC1400C SERIES

PART
NUMBER
DESCRIPTION WT
LBS
S1400C 1/2" Carbide Tipped Rotary Pilot "-10 UNC 2B Thread 6" OAL
w/ 3/4"-10 Jam Nut, Fits B & A Rotary Core Body 1-1/2" to 6" Dia
0.65




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
