ROTARY CHUCK DRIVER ™ ADAPTER
ADAPTER - CONVERTS PERCUSSION HAMMER DRILLS INTO ROTARY DRILL


< Previous           rotary chuck driver adapter sds plus sds max spline drive     Next  >



ROTARY CHUCK DRIVER ™ ADAPTER





CONVERT PERCUSSION HAMMER DRILLS INTO ROTARY DRILLS





The Rotary Chuck Driver™ enables any Spline-Drive or SDS MAX ® ™ hammer to use Rotary Rebar Cutters, High Speed Drill Bits, Hole Saws, B&A Carbide-Tipped Wood Boring Bits, or any other rotary drilling accessory. The Rotary Chuck Driver™ incorporates a versatile shank system that features a heavy duty keyless chuck.








HOW IT WORKS


  The shank of the Rotary Chuck Driver™ has been designed to prevent the anvil of the SDS MAX ®™ or Spline Drive rotary hammer from striking the end of the Rotary Chuck Driver™. This by-passes the hammering or percussion action of the SDS MAX ®™ or Spline Drive hammer, but allows full rotary action and full torque to be transmitted to the Rotary Chuck Driver™.

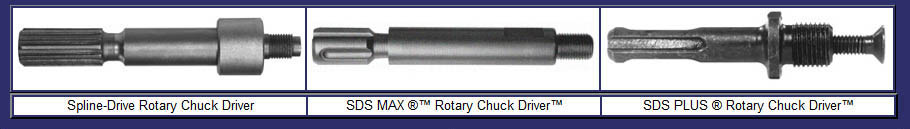

ROTARY CHUCK DRIVER™ - RCD SERIES - MULTI-PURPOSE ADAPTER

PART NUMBER DESCRIPTION HAMMER MODEL NUMBER WT
LBS

Spline-Drive Rotary Chuck Driver™

RCDSKL12

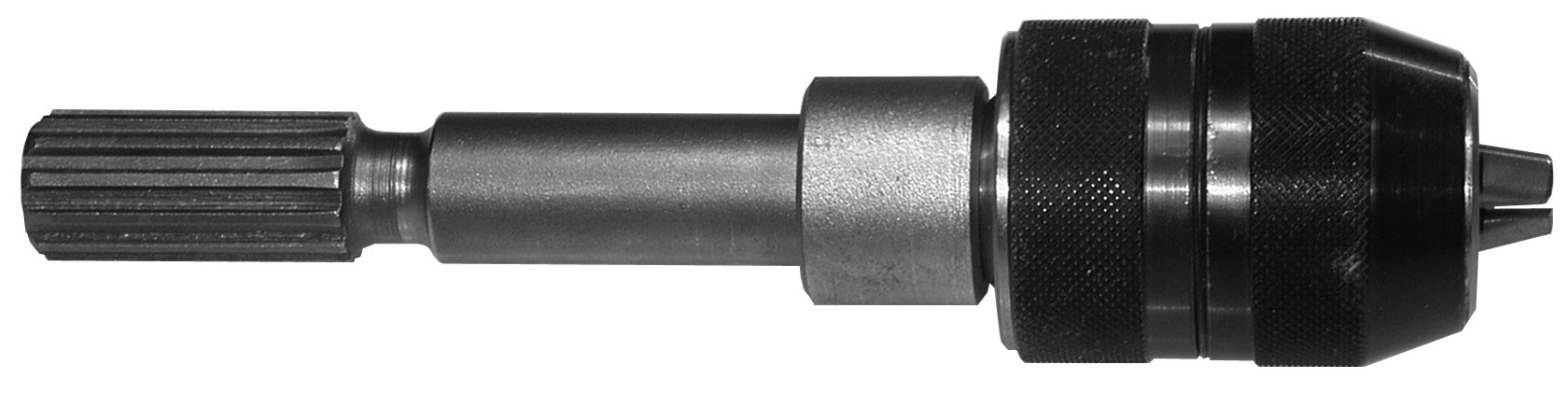

rcdskl12 - Spline Rotary Chuck Driver with 1/2" Keyless Chuck
Spline Drive RCD
w Keyless Chuck

AEG ®: PH350, PH240,PH38, PHD26, PHD38 B&D ®: 5041, 5045, 5059, 5093, 5095, 5096, 5098  Bosch: 11202, 11203, 11205, 11209, 11214, 11216, 11219,11220, 11232 Dewalt: DW530, DW533 HITACHI ®: DH25, DH38YE, DH50SB KANGO ®: 950S, 637S, 501S, 430S, 728S, 750S, 978S Maki 1.10

RCDS 1220

rcds-1220 - Spline Drive Shank Only
Spline Drive
(Drive Shank Only)

0.25

SDS MAX ®™ Rotary Chuck Driver™

RCDMKL12

rcdmkl12 - SDS Max ™ Rotary Chuck Driver with 1/2" Keyless Chuck
SDS MAX ®™ RCD
w/ Keyless Chuck

B&D ®: 5097K, 5099K  Bosch: 11214, 11216, 11223, 11227, 11230, 11231, 11309, 11311 DeWalt: 545 HILTI ®: TEF52, TEY54, TEY55, TEF60, TEF72, TEY74, TEY75, TE76, TEF92, TEY94  MILWAUKEE ®: 5308, 5313, 5346-21 1.10

RCDM 1220

rcdm-1220 - SDS Max] Drive Shank Only
SDS MAX ®™
(Drive Shank Only)

0.25

SDS PLUS ®™ Rotary Chuck Driver™

RCDDKL12

rcddkl12 - SDS Plus™ Rotary Chuck Driver with 1/2" Keyless Chuck
SDS PLUS ®™ RCD
w/ Keyless Chuck

AEG ®: APH14, PH210, PHE16RL, PHE19RL, PHE20, PHE24, PHE26  B&D ®: 5009, 5013K, 5014K, 5016, 5053K, 5054, 5056K, 5057K  Bosch: 11207, 11210, 11211, 11212, 11213RK, 11215, 11221DVS, 11222EVS/G, 11224VSR, 11228VSR Fein: 642  HILTI ®: TE5, TE10A, TE12, TE12S, TE14 0.95

RCDD 1220

rcdd-1220 SDS Plus™  Drive Shank Only
SDS PLUS ®™
(Drive Shank Only)

0.10

Keyless Chuck

RCDC-522

rcdc-522 1/2" Keyless Chuck
1/2" Keyless Chuck

Replacement 1/2” Capacity Heavy Duty Keyless Chuck - Jacobs Style 0.85




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
