RAILROAD TIE BORE BITS
DOUBLE FLUTE - TBDF SERIES
----

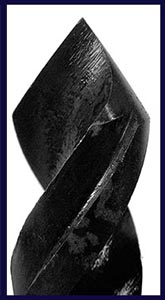

RAILROAD TIE BORE BIT

The Most Widely Used Railroad Bit Design


Ideal for drilling railroad cross ties, landscape timbers, marine piles, and thick salt treated posts. The unique point geometry and hollow flute design is self feeding without the aid of a lead screw.  The RAILROAD TIE BORE BIT can be provided with various shank configurations, the most common is the 1/2 In. Round Shank with 0, 1 or 3 flats. Made from high quality American tool steel.
  • Designed to Drill Spike Hole in Wood Railroad Cross Ties / Sleeper
  • The open flute design prevents chip packing and reduces wood burning.
  • Single Flute & Double Flute available w/ custom flute length and tip angle. Tip Geometry Designed to be self feeding.





Railroad bits are no longer a stock product and overall lengths are varied due to machinery.

RAILROAD TIE BORE BITS
CARBON STEEL ALLOY - DOUBLE FLUTE
PART
NUMBER		 SIZE USL OAL WT
LBS
1/2" Diameter
TBDF816X9.5 1/2" 6¼" 9½" 0.45
TBDF816X12 1/2" 8¾" 12" 0.50
9/16" Diameter
TBDF916X9.5 9/16" 6¼" 9½" 0.50
TBDF916X12 9/16" 8¾" 12" 0.55
5/8" Diameter
TBDF58X9.5 5/8" 6¼" 9½" 0.55
TBDF58X12 5/8" 8¾" 12" 0.60
11/16" Diameter
TBDF1116X9.5 11/16" 6¼" 9½" 0.60
TBDF1116X12 11/16" 8¾" 12" 0.65
3/4" Diameter
TBDF34X9.5 3/4" 6¼" 9½" 0.66
TBDF34X12 3/4" 8¾" 12" 0.75





B & A's Railroad Tie Bits feature variable geometries that allow the bits to be fully customized at the factory to meet the wide range and variety of applications, materials, and tools required on today's demanding job sites.




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
