RAILROAD TIE BORE BITS
RRTB SERIES - TBDF SERIES - SINGLE & DOUBLE FLUTE
----


< Previous


Next  >

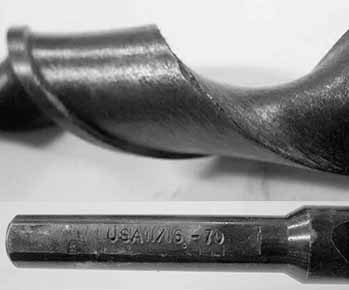

RAILROAD TIE BORE BIT

The Most Widely Used Railroad Bit Design


Ideal for drilling railroad cross ties, landscape timbers, marine piles, and thick salt treated posts. The unique point geometry and hollow flute design is self feeding without the aid of a lead screw.  The RAILROAD TIE BORE BIT makes an excellent exit hole while keeping "blowout" to a minimum. The RAILROAD TIE BORE BIT can be provided with various shank configurations, the most common is the 1/2" Round Shank with 0, 1 or 3 flats.  This allows the drill bit to be chucked into a " Jacobs Chuck or larger drill. Made from high quality American tools steel on precision CNC grinders. A "must have" for any job that requires a through hole in a thick timber of spikes or bolts.
  • Designed to Drill Spike Hole in Wood Railroad Cross Ties / Sleeper
  • The open flute design prevents chip packing and reduces wood burning.

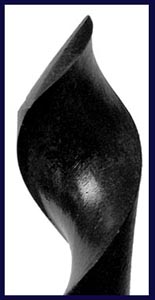

  • Single & Double Flute available w/ custom flute length and tip angle. Tip Geometry Designed to be self feeding.





Railroad bits are no longer a stock product and overall lengths are varied due to machinery.

RAILROAD TIE BORE BITS
CARBON STEEL ALLOY - SINGLE FLUTE

PART
NUMBER
SIZE USL OAL WT
LBS
7/16" Diameter
RRTB716X9.5 7/16" 6" 9" 0.40
RRTB716X12 7/16" 8" 12" 0.50
RRTB716X18 7/16" 14" 18" 0.65
1/2" Diameter
RRTB816X9.5 1/2" 6" 9" 0.45
RRTB816X12 1/2" 8" 12" 0.50
RRTB816X18 1/2" 14" 18" 0.70
9/16" Diameter
RRTB916X9.5 9/16" 6" 9" 0.50
RRTB916X12 9/16" 8" 12" 0.55
RRTB916X18 9/16" 14" 18" 0.80
5/8" Diameter
RRTB58X9.5 5/8" 6" 9" 0.55
RRTB58X12 5/8" 8" 12" 0.60
RRTB58X18 5/8" 14" 18" 0.90
11/16" Diameter
RRTB1116X9.5 11/16" 6" 9" 0.60
RRTB1116X12 11/16" 8" 12" 0.65
RRTB1116X18 11/16" 14" 18" 1.00
3/4" Diameter
RRTB34X9.5 3/4" 6" 9" 0.66
RRTB34X12 3/4" 8" 12" 0.75
RRTB34x18 3/4" 14" 18" 1.10
13/16" Diameter
RRTB1316X9.5 13/16" 6" 9" 0.70
RRTB1316X12 13/16" 8" 12" 0.85
RRTB1316x18 13/16" 14" 18" 1.20








Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
