B TAPER MASONRY PERCUSSION
PB SERIES - CARBIDE TIPPED




 PB SERIES  - B TAPER MASONRY PERCUSSION

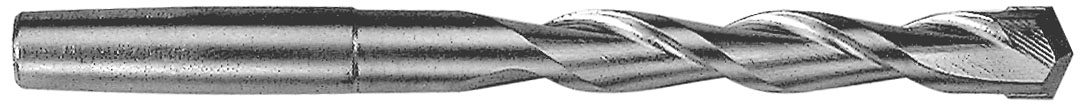

B & A Manufacturing's Taper drill bits are made to fit our high quality adapters. The smaller "A" taper shanks are intended for bit diameters from 3/16" to 7/8". "B" taper shanks are most effective in large capacity rotary percussion hammers. They are available in sizes from 7/16" to 1-1/8" diameters. B & A Taper drill bits are made from high grade steel that is heat treated and tempered for the longest drilling life possible. The asymmetrical spiral flute, B & As "Ultra Flute", allows for efficient dust removal and cooler operating temperatures.

B TAPER SHANK


PERCUSSION - B-TAPER - MASONRY

PART
NUMBER
SIZE USL OAL WT
LBS
PART
NUMBER
SIZE USL OAL WT
LBS
7/16" Diameter 3/4" Diameter
 PB-600 7/16" 4" 6" 0.25  PB-606 3/4" 4" 6" 0.40
15/32" Diameter  SB9-29 3/4" 7" 9" 0.55
PB-601 15/32" 4" 6" 0.25  PB-616 3/4" 11" 13" 0.90
1/2" Diameter  PB-626 3/4" 17" 19" 1.40
 PB-602 1/2" 4" 6" 0.20 13/16" Diameter
 SB9-23 1/2" 7" 9" 0.35  PB-607 13/16" 4" 6" 0.50
 PB-612 1/2" 11" 13" 0.40  SB9-31 13/16" 7" 9" 0.70
 PB-622 1/2" 17" 19" 0.60  PB-617 13/16" 11" 13" 1.15
PB-1236 1/2" 33" 36" 1.20  PB-627 13/16" 17" 19" 1.55
17/32" Diameter 27/32" Diameter
 PB-632 17/32" 4" 6" 0.25  PB-608 27/32" 4" 6" 0.50
 SB9-24 17/32" 7" 9" 0.35  SB9-30 27/32" 7" 9" 0.87
9/16" Diameter  PB-618 27/32" 11" 13" 1.20
 PB-603 9/16" 4" 6" 0.30  PB-628 27/32" 17" 19" 1.65
 SB9-25 9/16" 7" 9" 0.40 7/8" Diameter
 PB-613 9/16" 11" 13" 0.45  PB-609 7/8" 4" 6" 0.55
 PB-623 9/16" 16" 19" 0.60  SB9-32 7/8" 7" 9" 0.90
5/8" Diameter  PB-619 7/8" 11" 13" 1.30
 PB-604 5/8" 4" 6" 0.30  PB-629 7/8" 17" 19" 1.75
 SB9-26 5/8" 7" 9" 0.45 1" Diameter
 PB-614 5/8" 11" 13" 0.55  PB-610 1" 4" 6" 0.65
 PB-624 5/8" 17" 19" 0.70  SB9-33 1" 7" 9" 0.95
21/32" Diameter  PB-620 1" 11" 13" 1.45
 PB-633 21/32" 4" 6" 0.35  PB-630 1" 17" 19" 1.90
 SB9-27 21/32" 7" 9" 0.50 1-1/8" Diameter
11/16" Diameter  PB-611 1-1/8" 4" 6" 0.85
 PB-605 11/16" 4" 6" 0.35  SB9-34 1-1/8" 7" 9" 1.05
 SB9-28 11/16" 7" 9" 0.50  PB-621 1-1/8" 11" 13" 1.65
 PB-615 11/16" 11" 13" 0.85  PB-631 1-1/8" 17" 19" 2.05
 PB-625 11/16" 17" 19" 1.20




Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
