BELL HANGER DRILL BITS
Installer Drill Bits - Wire Fishing Drill Bits
 BELL HANGER DRILL BITS - CARBIDE TIPPED

< Previous bell hanger drill bits - drill bits - carbide tipped drill bits - wire fishing drill bits - installer drill bits
 bell hanger drill bits - drill bits - carbide tipped drill bits - wire fishing drill bits - installer drill bits		 Next  >

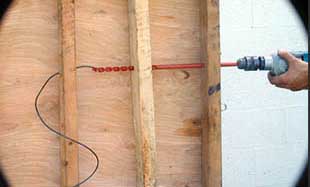

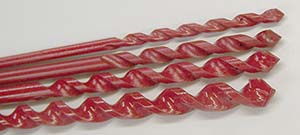

  The Carbide Tipped Bell Hanger is designed for making holes and fishing wire through these holes for all electrical, telephone, security-alarm, structured wiring systems or any small wire installations. A hole is provided in the flute for connecting the wire to the drill bit and pulling / fishing the wire through the wall. Flutes are designed for faster, smother, and cleaner holes in all types of material.



  • High grade alloy steel body

  • Super tough tungsten carbide tip

    •

  • Resists wear when used in drywall, plaster, etc.

  • The Bell hanger will not distort with normal use

  • Resists damage during drilling if metal is encountered.

    •

    100% Made in the USA

    The BH Series is carbide tipped for drilling through stucco, masonry, concrete block, metal lath or wood or any combination of these materials.






    BELL HANGER DRILL BITS - CARBIDE TIPPED
    PART
    NUMBER    		 SIZE OAL SHANK
    DIA    		 WT
    LBS    		 PART
    NUMBER    		 SIZE OAL SHANK
    DIA    		 WT
    LBS
    1/4" Diameter 3/8" Diameter
     BH-1412 1/4" 12" 1/4" 0.20  BH-3812 3/8" 12" 3/8" 0.35
     BH-1418 1/4" 18" 1/4" 0.30  BH-3818 3/8" 18" 3/8" 0.55
     BH-1424 1/4" 24" 1/4" 0.35  BH-3824 3/8" 24" 3/8" 0.70
     BH-1436 1/4" 36" 1/4" 0.50  BH-3836 3/8" 36" 3/8" 1.10
     BH-1448 1/4" 48" 1/4" 0.60  BH-3848 3/8" 48" 3/8" 1.45
    5/16" Diameter 1/2" Diameter
     BH-51612 5/16" 12" 5/16" 0.30  BH-1212 1/2" 12" 3/8" 0.45
     BH-51618 5/16" 18" 5/16" 0.40  BH-1218 1/2" 18" 3/8" 0.80
     BH-51624 5/16" 24" 5/16" 0.55  BH-1224 1/2" 24" 3/8" 1.15
     BH-51636 5/16" 36" 5/16" 0.80  BH-1236 1/2" 36" 3/8" 1.80
     BH-51648 5/16" 48" 5/16" 1.05  BH-1248 1/2" 48" 3/8" 1.95

    Additional lengths, shanks, and sizes available upon request.



    bell hanger drill bits - drill bits - carbide tipped drill bits - wire fishing drill bits - installer drill bits

    		 bell hanger drill bits - drill bits - carbide tipped drill bits - wire fishing drill bits - installer drill bits bell hanger drill bits - drill bits - carbide tipped drill bits - wire fishing drill bits - installer drill bits

    STEP 1

    STEP 2

    STEP 3



    Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
