RUFFY 2000
EL SERIES - CARBIDE-TIPPED - WOOD AUGER
----


Penetrator self feeding wood auger drill bits - carbide tipped drill bits

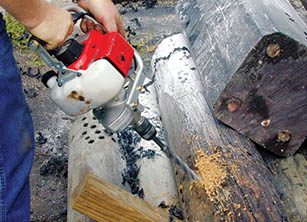

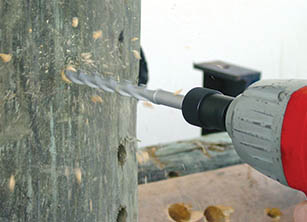

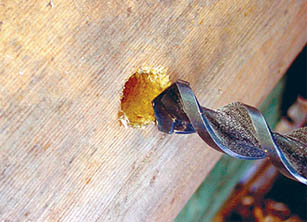

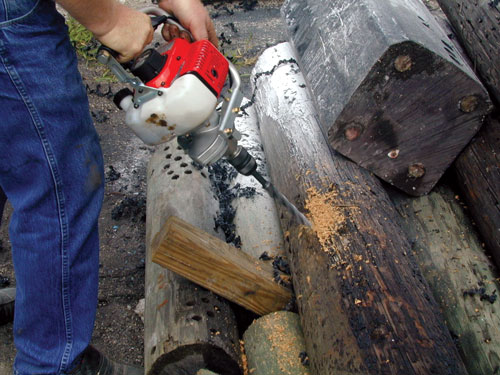

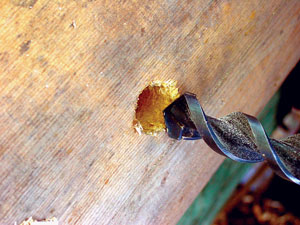

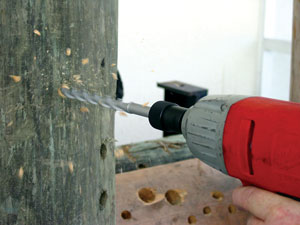

The RUFFY 2000, which is also known as a FRAMING BIT, is a general purpose wood boring bit. Designed for use with hydraulic, electric, or pneumatic driven power tools. The spear point cutting tip design allows the RUFFY 2000 to be used in applications that require a bit that is not self-feeding. The RUFFY 2000 can be used in power tools that have a quick change chuck or even a three-jaw chuck. The RUFFY 2000 will outlast ordinary non-carbide tipped drill bits in almost any application. The RUFFY 2000 can easily cut through CCA or creosote power poles with nails or metal objects embedded in them. B & A Manufacturing Company offers complete factory re-sharpening or rebuilding services for carbide-tipped bits.





RUFFY 2000 - EL SERIES - CARBIDE-TIPPED AUGER
PART
NUMBER		 SIZE USL OAL WT
LBS		 PART
NUMBER		 SIZE USL OAL WT
LBS

7/16" HEX SHANK

5/8" HEX SHANK
1/2" Diameter 1/2" Diameter
 EL70808 1/2" 9" 12" 0.40  EL50808 1/2" 9" 12" 0.70
 EL71208 1/2" 15" 18" 0.50  EL51208 1/2" 15" 18" 0.80
 EL71808 1/2" 21" 24" 0.65  EL51808 1/2" 21" 24" 0.85
 EL73308 1/2" 33" 36" 1.00
 EL74408 1/2" 45" 48" 1.30
9/16" Diameter 9/16" Diameter
 EL70809 9/16" 9" 12" 0.45  EL50809 9/16" 9" 12" 0.70
 EL71209 9/16" 15" 18" 0.50  EL51209 9/16" 15" 18" 0.90
 EL71809 9/16" 21" 24" 0.70  EL51809 9/16" 21" 24" 1.10
 EL73309 9/16" 33" 36" 1.00
 EL71809 9/16" 45" 48" 1.40

5/8" Diameter

5/8" Diameter
 EL70910 5/8" 9" 12" 0.50  EL50810 5/8" 9" 12" 0.80
 EL71210 5/8" 15" 18" 0.55  EL51210 5/8" 15" 18" 0.90
 EL71810 5/8" 21" 24" 0.80  EL51810 5/8" 21" 24" 1.15
 EL73310 5/8" 33" 36" 1.10
 EL74410 5/8" 45" 48" 1.60

11/16" Diameter

11/16" Diameter
 EL70811 11/16" 9" 12" 0.55  EL50811 11/16" 9" 12" 0.90
 EL71211 11/16" 15" 18" 0.60  EL51211 11/16" 15" 18" 1.10
 EL71811 11/16" 21" 24" 0.90  EL51811 11/16" 21" 24" 1.50
 EL73311 11/16" 33" 36" 1.20
 EL74411 11/16" 45" 48" 1.80

3/4" Diameter

3/4" Diameter
 EL70812 3/4" 9" 12" 0.60  EL50812 3/4" 9" 12" 0.85
 EL71212 3/4" 15" 18" 0.65  EL51212 3/4" 15" 18" 1.20
 EL71812 3/4" 21" 24" 1.00  EL51812 3/4" 21" 24" 1.70
 EL73312 3/4" 33" 36" 1.30  EL53312 3/4" 33" 36" 2.25
 EL74412 3/4" 45" 48" 2.00  EL54412 3/4" 45" 48" 3.40
13/16" Diameter 13/16" Diameter
 EL70813 13/16" 9" 12" 0.65  EL50813 13/16" 9" 12" 1.10
 EL71213 13/16" 15" 18" 0.75  EL51213 13/16" 15" 18" 1.35
 EL71813 13/16" 21" 24" 1.10  EL51813 13/16" 21" 24" 1.80
 EL73313 13/16" 33" 36" 1.50  EL53313 13/16" 33" 36" 2.55
 EL74413 13/16" 45" 48" 2.20  EL54413 13/16" 45" 48" 3.80
7/8" Diameter 7/8" Diameter
 EL70814 7/8" 9" 12" 0.70  EL50814 7/8" 9" 12" 1.15
 EL71214 7/8" 15" 18" 0.85  EL51214 7/8" 15" 18" 1.45
 EL71814 7/8" 21" 24" 1.20  EL51814 7/8" 21" 24" 1.85
 EL73314 7/8" 33" 36" 1.70  EL53314 7/8" 33" 36" 2.65
 EL74414 7/8" 45" 48" 2.40  EL54414 7/8" 45" 48" 3.95
15/16" Diameter 15/16" Diameter
 EL70815 15/16" 9" 12" 0.90  EL50815 15/16" 9" 12" 1.20
 EL71215 15/16" 15" 18" 1.15  EL51215 15/16" 15" 18" 1.50
 EL71815 15/16" 21" 24" 1.60  EL51815 15/16" 21" 24" 1.95
 EL73315 15/16" 33" 36" 2.30  EL53315 15/16" 33" 36" 2.70
 EL74415 15/16" 45" 48" 3.20  EL54415 15/16" 45" 48" 4.20
1"  Diameter 1"  Diameter
 EL70816 1" 9" 12" 0.95  EL50816 1" 9" 12" 1.25
 EL71216 1" 15" 18" 1.20  EL51216 1" 15" 18" 1.75
 EL71816 1" 21" 24" 1.70  EL51816 1" 21" 24" 2.10
 EL73316 1" 33" 36" 2.40  EL53316 1" 33" 36" 3.10
 EL74416 1" 45" 48" 3.40  EL54416 1" 45" 48" 4.60
1-1/16" Diameter 1-1/16" Diameter
 EL70817 1-1/16" 9" 12" 1.10  EL50817 1-1/16" 9" 12" 1.35
 EL71217 1-1/16" 15" 18" 1.30  EL51217 1-1/16" 15" 18" 1.85
 EL71817 1-1/16" 21" 24" 1.85  EL51817 1-1/16" 21" 24" 2.30
 EL73317 1-1/16" 33" 36" 2.60  EL53317 1-1/16" 33" 36" 3.45
 EL74417 1-1/16" 45" 48" 3.70  EL54417 1-1/16" 45" 48" 4.80
ADDITIONAL SIZES AND LENGTHS AVAILABLE UPON REQUEST

Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
