ELIMINATOR™ SELF FEEDING WOOD AUGER

Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.

< Previous Eliminator self feeding wood auger drill bits - carbide tipped drill bits Next  >

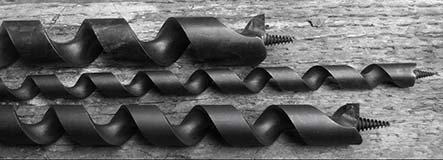

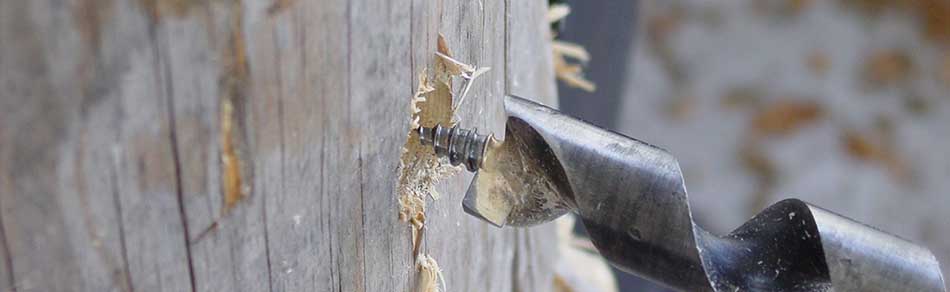

Our patented Eliminator™ is equipped with a standard general purpose lead screw, a carbide cutter, a hardened steel cutting spur, and a single hollow flute body milled from a single piece of alloy steel for strength. The carbide cutter is brazed to a steel body with a hardened steel cutting edge. This combination allows the ELIMINATOR™ to bore holes in all types of wood quickly and easily while leaving little or no residue producing a clean smooth hole. The ELIMINATOR™ is self feeding and requires less torque. It can be used with electric, air, or gasoline powered drill motors and impact wrenches. The ELIMINATOR™ can be sharpened or completely rebuilt at our factory in South Florida.

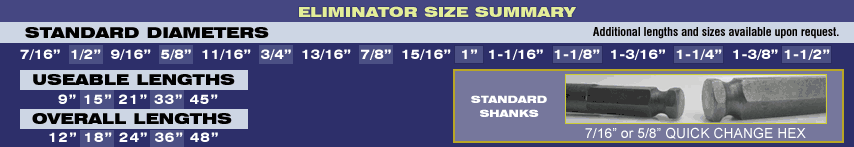

ELIMINATOR™ - ER SERIES - WOOD AUGER - POLE DRILL BITS - CARBIDE TIPPED


   PART
NUMBER		 SIZE USL OAL WT
LBS		  PART
NUMBER		 SIZE USL OAL WT
LBS
  7/16" HEX SHANK 5/8" HEX SHANK
  7/16" Diameter 7/16" Diameter
   ER70907 7/16" 9" 12" 0.50 Not Available
   ER71507 7/16" 15" 18" 0.70 Not Available
   ER72107 7/16" 21" 24" 0.85 Not Available
  Not Available Not Available
  Not Available Not Available
  1/2" Diameter 1/2" Diameter
   ER70908 1/2" 9" 12" 0.50 ER50908 1/2" 9" 12" 0.55
   ER71508 1/2" 15" 18" 0.70 ER51508 1/2" 15" 18" 0.75
   ER72108 1/2" 21" 24" 0.85 ER52108 1/2" 21" 24" 0.90
   ER73308 1/2" 33" 36" 1.55 ER53308 1/2" 33" 36" 1.80
   ER74408 1/2" 33" 48" 2.05 Not Available
  9/16" Diameter 9/16" Diameter
   ER70909 9/16" 9" 12" 0.55  ER50909 9/16" 9" 12" 0.65
   ER71509 9/16" 15" 18" 0.80  ER51509 9/16" 15" 18" 0.90
   ER72109 9/16" 21" 24" 1.00  ER52109 9/16" 21" 24" 1.25
   ER73309 9/16" 33" 36" 2.15  ER53309 9/16" 33" 36" 2.30
   ER74409 9/16" 45" 48"

2.65

  ER54409 9/16" 45" 48" 2.95
  5/8" Diameter 5/8" Diameter
   ER70910 5/8" 9" 12" 0.60  ER50910 5/8" 9" 12" 0.70
   ER71510 5/8" 15" 18" 0.90  ER51510 5/8" 15" 18" 1.05
   ER72110 5/8" 21" 24" 1.15  ER52110 5/8" 21" 24" 1.45
   ER73310 5/8" 33" 36" 2.40  ER53310 5/8" 33" 36" 2.60
   ER74410 5/8" 45" 48" 3.10  ER54410 5/8" 45" 48" 3.40
  11/16" Diameter 11/16" Diameter
   ER70911 11/16" 9" 12" 0.65  ER50911 11/16" 9" 12" 0.90
   ER71511 11/16" 15" 18" 1.10  ER51511 11/16" 15" 18" 1.35
   ER72111 11/16" 21" 24" 1.35  ER52111 11/16" 21" 24" 1.65
   ER73311 11/16" 33" 36" 2.55  ER53311 11/16" 33" 36" 2.75
   ER74411 11/16" 45" 48" 3.45  ER54411 11/16" 45" 48" 3.65
  3/4" Diameter 3/4" Diameter
   ER70912 3/4" 9" 12" 0.75  ER50912 3/4" 9" 12" 1.05
   ER71512 3/4" 15" 18" 1.15  ER51512 3/4" 15" 18" 1.45
   ER72112 3/4" 21" 24" 1.45  ER52112 3/4" 21" 24" 1.70
   ER73312 3/4" 33" 36" 2.80  ER53312 3/4" 33" 36" 3.00
   ER74412 3/4" 45" 48" 3.80  ER54412 3/4" 45" 48" 4.05
  13/16" Diameter 13/16" Diameter
   ER70913 13/16" 9" 12" 0.95  ER50913 13/16" 9" 12" 1.10
   ER71513 13/16" 15" 18" 1.35  ER51513 13/16" 15" 18" 1.60
   ER72113 13/16" 21" 24" 1.70  ER52113 13/16" 21" 24" 1.85
   ER73313 13/16" 33" 36" 3.20  ER53313 13/16" 33" 36" 3.40
   ER74413 13/16" 45" 48" 4.15  ER54413 13/16" 45" 48" 4.35
  7/8" Diameter 7/8" Diameter
   ER70914 7/8" 9" 12" 1.00  ER50914 7/8" 9" 12" 1.20
   ER71514 7/8" 15" 18" 1.50  ER51514 7/8" 15" 18" 1.70
   ER72114 7/8" 21" 24" 1.80  ER52114 7/8" 21" 24" 2.05
   ER73314 7/8" 33" 36" 3.40  ER53314 7/8" 33" 36" 3.55
   ER74414 7/8" 45" 48" 4.60  ER54414 7/8" 45" 48" 4.80
  15/16" Diameter 15/16" Diameter
  ER70915 15/16" 9" 12" 1.15 ER50915 15/16" 9" 12" 1.40
  ER71515 15/16" 15" 18" 1.80 ER51515 15/16" 15" 18" 1.87
  ER72115 15/16" 21" 24" 2.35 ER52115 15/16" 21" 24" 2.25
  ER73315 15/16" 33" 36" 3.70 ER73315 15/16" 33" 36" 3.70
  ER74415 15/16" 45" 48" 4.95 ER74415 15/16" 45" 48" 4.95
  1" Diameter 1" Diameter
  ER70916 1" 9" 12" 1.20 ER50916 1" 9" 12" 1.60
  ER71516 1" 15" 18" 1.80 ER51516 1" 15" 18" 1.90
  ER72116 1" 21" 24" 2.45 ER52116 1" 21" 24" 2.50
  ER73316 1" 33" 36" 4.55 ER53316 1" 33" 36" 4.75
  ER74416 1" 45" 48" 5.85 ER54416 1" 45" 48" 6.05
  1-1/16" Diameter 1-1/16" Diameter
   ER70917 1-1/16" 9" 12" 1.45 ER50917 1-1/16" 9" 12" 1.85
   ER71517 1-1/16" 15" 18" 2.30 ER51517 1-1/16" 15" 18" 2.40
   ER72117 1-1/16" 21" 24" 2.85 ER52117 1-1/16" 21" 24" 2.95
   ER73317 1-1/16" 33" 36" 5.55 ER53317 1-1/16" 33" 36" 5.75
   ER74417 1-1/16" 45" 48" 6.35 ER54417 1-1/16" 45" 48" 6.50
  1-1/8" Diameter - Special Order 1-1/8" Diameter - Special Order
  ER70918 1-1/8" 9" 12" 1.80  ER50918 1-1/8" 9" 12" 1.95
  ER71518 1-1/8" 15" 18" 2.45 ER51518 1-1/8" 15" 18" 2.55
  ER72118 1-1/8" 21" 24" 3.30 ER52118 1-1/8" 21" 24" 3.40
  ER73318 1-1/8" 33" 36" 5.70 ER53318 1-1/8" 33" 36" 5.95
  ER74418 1-1/8" 45" 48" 6.95  ER54418 1-1/8" 45" 48" 7.10
  1-3/16" Diameter - Special Order 1-3/16" Diameter - Special Order
  ER70919 1-3/16" 9" 12" 2.05  ER50919 1-3/16" 9" 12" 2.15
  ER71519 1-3/16" 15" 18" 2.75  ER51519 1-3/16" 15" 18" 3.00
  ER72119 1-3/16" 21" 24" 3.70  ER52119 1-3/16" 21" 24" 4.05
  Not Recommended  ER53319 1-3/16" 33" 36" 6.15
  Not Recommended  ER54419 1-3/16" 45" 48" 1.25
  1-1/4" Diameter - Special Order 1-1/4" Diameter - Special Order
   ER70920 1-1/4" 9" 12" 2.10 ER50920 1-1/4" 9" 12" 2.70
   ER71520 1-1/4" 15" 18" 3.20  ER51520 1-1/4" 15" 18" 4.10
   ER72120 1-1/4" 21" 24" 6.45  ER52120 1-1/4" 21" 24" 5.35
  Not Recommended ER53320 1-1/4" 33" 36" 6.65
  Not Recommended ER54420 1-1/4" 45" 48" 7.60
  1-3/8" Diameter - Special Order 1-3/8" Diameter - Special Order
   ER70922 1-3/8" 9" 12" 2.55  ER50922 1-3/8" 9" 12" 2.70
   ER71522 1-3/8" 15" 18" 3.75 ER51522 1-3/8" 15" 18" 4.10
   ER72122 1-3/8" 21" 24" 5.10 ER52122 1-3/8" 21" 24" 5.35
  Not Recommended  ER53322 1-3/8" 33" 36" 6.65
  Not Recommended  ER54422 1-3/8" 45" 48" 7.60
  1-1/2" Diameter - Special Order 1-1/2" Diameter - Special Order
   ER70924 1-1/2" 9" 12" 3.10  ER50924 1-1/2" 9" 12" 3.25
   ER71524 1-1/2" 15" 18" 4.50  ER51524 1-1/2" 15" 18" 4.80
   ER72124 1-1/2" 21" 24" 5.90 ER52124 1-1/2" 21" 24" 6.35
  Not Recommended ER53324 1-1/2" 33" 36" 6.80
  Not Recommended  ER54424 1-1/2" 45" 48" 7.75


B & A does not warranty 7/16" Hex Shanks on wood bits over 1-1/8" in diameter.
Additional lengths and sizes available upon request.
