SP SERIES
|
DRILL BITS FOR HARD STEEL - RIGHT HANDED

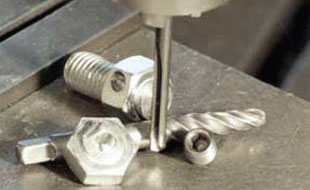

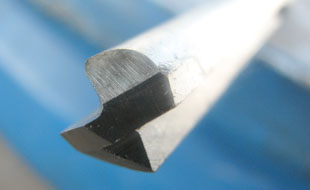

The B & A Hard Steel Bit is ideal for locksmiths, auto mechanics, or any operator drilling into extra hard steel such as safe, bearing race, or die. The SP Series carbide-tipped design prevents chipping and dissipates heat quickly. Manufactured to ANSI Tolerances, it is not for production use due to the oversized carbide cutting tip.
|
|
|
|
DRILL BITS FOR HARD STEEL - CARBIDE TIPPED DRILL BITS
|
| PART NUMBER |
SIZE |
OAL |
SHANK |
WT |
|
|
| SP-1 |
1/8" |
2-3/4" |
1/8" |
0.01 |
|
| SP-2 |
5/32" |
3" |
5/32" |
0.01 |
|
| SP-3 |
11/64" |
3" |
11/64" |
0.01 |
|
| SP-4 |
3/16" |
3" |
3/16" |
0.01 |
|
| SP-5 |
7/32" |
4" |
7/32" |
0.05 |
|
| SP-6 |
1/4" |
4" |
1/4" |
0.05 |
|
| SP-7 |
1/4" |
6" |
1/4" |
0.05 |
|
| SP-8 |
9/32" |
4" |
9/32" |
0.05 |
|
| SP-9 |
5/16" |
4" |
1/4" |
0.05 |
|
| SP-10 |
5/16" |
6" |
5/16" |
0.10 |
|
| SP-11 |
3/8" |
4" |
1/4" |
0.10 |
|
| SP-12 |
3/8" |
6" |
3/8" |
0.15 |
|
| SP-13 |
7/16" |
6" |
3/8" |
0.15 |
|
| SP-14 |
1/2" |
6" |
1/2" |
0.25 |
|
| SP-15 |
9/16" |
6" |
1/2" |
0.30 |
|
| SP-16 |
5/8" |
6" |
1/2" |
0.35 |
|

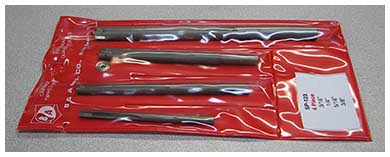

4 PIECE VARIETY PACK
|
| PART NUMBER |
OAL |
WT LBS |
|
|
| SP-123 |
4 PIECE VARIETY PACK |
0.20 |
|
INCLUDES
|
 |
|
SP-4
SP-6
SP-9
SP-12
|
3/16" X3"
1/4" X4"
5/16" X4"
3/8" X6" |
0.01
0.05
0.05
0.15
|
|
|
Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
|
