FIREBALL™
Wood Drill Bits




< Previous

fireball self feeding wood auger drill bits - carbide tipped drill bits

Next  >

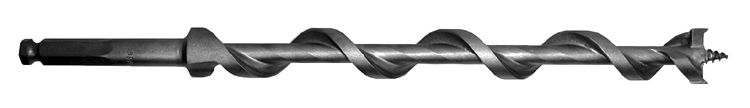

The FIREBALL™ is a general purpose, medium to heavy-duty, carbide-tipped, wood boring drill bit. It's milled from a single piece of steel creating a solid center and a truly unique flute design. This combination enables it to outperform and outlast any ordinary steel auger bit. The FIREBALL™ features a patented double spur, carbide-tip configuration and proven power-auger flute design. This design produces numerous straight holes and is self-feeding. The FIREBALL™ works equally well with newer hydraulic power tools that utilize a high torque, high R.P.M. design, or with older hydraulic tools that may develop slightly less torque and speed. The FIREBALL™ can also be used with most heavy-duty electric, pneumatic, or gasoline powered drill motors or impact wrenches rated at 1/2" capacity or larger.


FIREBALL - H SERIES - WOOD AUGER - POLE BITS
PART
NUMBER		 SIZE USL OAL WT
LBS		 PART
NUMBER		 SIZE USL OAL WT
LBS
7/16" HEX SHANK 5/8" HEX SHANK
9/16" Diameter 9/16" Diameter
 H70809 9/16" 9" 12" 0.45  H50809 9/16" 9" 12" 0.65
 H71209 9/16" 15" 18" 0.60  H51209 9/16" 15" 18" 0.80
 H71809 9/16" 21" 24" 0.95  H51809 9/16" 21" 24" 1.15
11/16" Diameter 11/16" Diameter
 H70811 11/16" 9" 12" 0.55  H50811 11/16" 9" 12" 0.80
 H71211 11/16" 15" 18" 0.75  H51211 11/16" 15" 18" 1.00
 H71811 11/16" 21" 24" 1.00  H51811 11/16" 21" 24" 1.20
 H73211 11/16" 33" 36" 1.15  H53211 11/16" 33" 36" 1.20
 H73611 11/16" 36" 48" 2.15  H53611 11/16" 36" 48" 2.30
13/16" Diameter 13/16" Diameter
 H70813 13/16" 9" 12" 0.60  H50813 13/16" 9" 12" 0.75
 H71213 13/16" 15" 18" 0.90  H51213 13/16" 15" 18" 1.05
 H71813 13/16" 21" 24" 1.20  H51813 13/16" 21" 24" 1.25
 H73213 13/16" 33" 36" 1.50  H53213 13/16" 33" 36" 1.60
 H73613 13/16" 36" 48" 2.55  H53613 13/16" 36" 48" 2.70
15/16" Diameter 15/16" Diameter
 H70815 15/16" 9" 12" 0.70  H50815 15/16" 9" 12" 0.85
 H71215 15/16" 15" 18" 1.05  H51215 15/16" 15" 18" 1.20
 H71815 15/16" 21" 24" 1.35  H51815 15/16" 21" 24" 1.60
1-1/16" Diameter 1-1/16" Diameter
 H70817 1-1/16" 9" 12" 0.80  H50817 1-1/16" 9" 12" 0.95
 H71217 1-1/16" 15" 18" 1.20  H51217 1-1/16" 15" 18" 1.30
 H71817 1-1/16" 21" 24" 1.60  H51817 1-1/16" 21" 24" 1.75
B & A does not warranty 7/16" Hex Shanks
 on wood bits over 1-1/8" in diameter.
Additional lengths and sizes available upon request.
